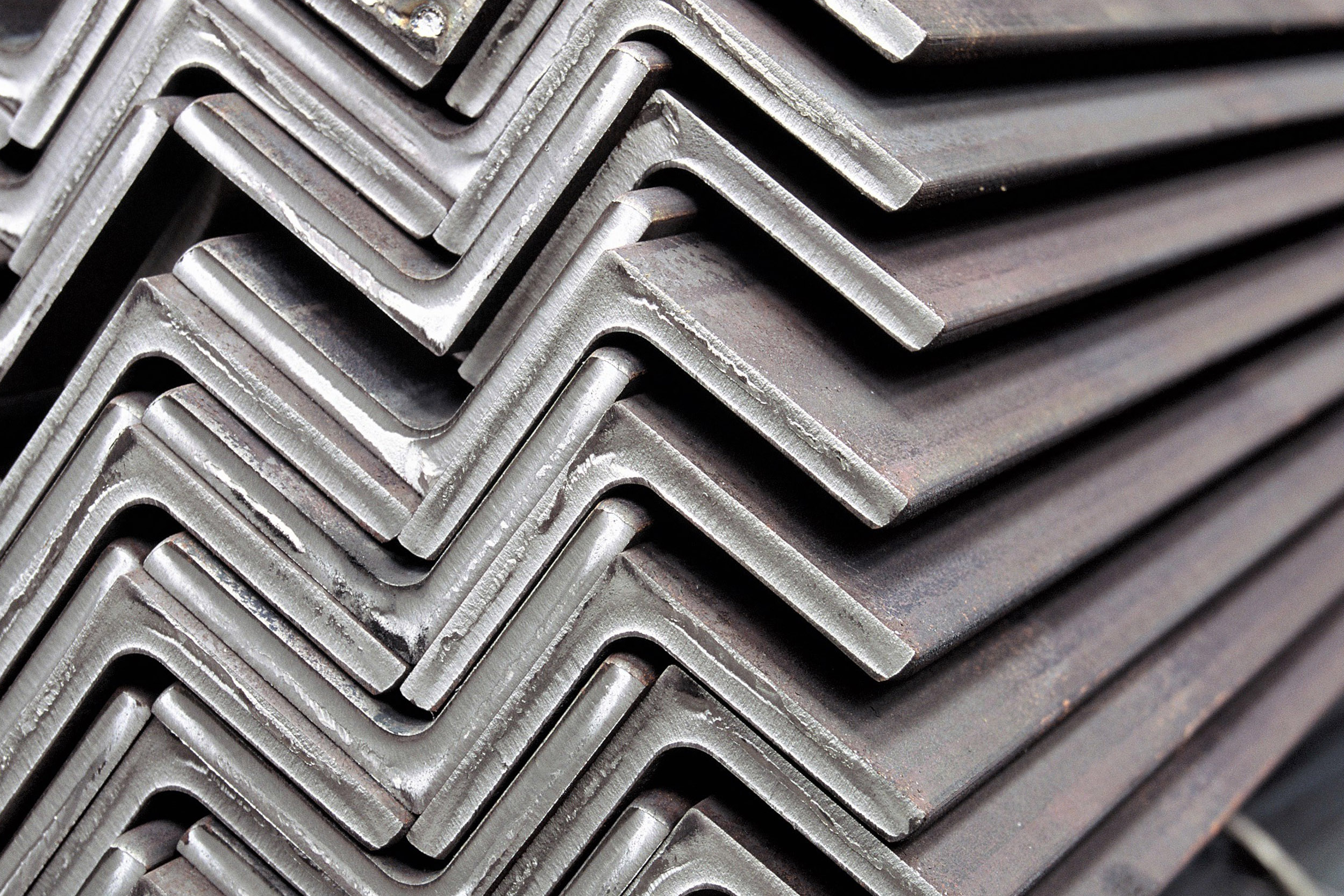

L-shaped steel angles, or L-angles, are structural components with two perpendicular flanges forming a right angle. They are available in equal and unequal angles, making them versatile for reinforcement, bracing, and load distribution. L-angles provide excellent stability in both vertical and horizontal applications, preventing structural deformation under stress.
Uses:
– Structural Reinforcement – Strengthens beams, columns, and trusses in construction projects.
– Industrial & Warehouse Racks – Forms sturdy shelving units and support frameworks.
– Bridges & Towers – Provides reinforcement in power transmission towers, railway bridges, and telecom structures.
– Frames & Brackets – Used in staircases, door and window frames, and fabrication projects.
| PRODUCT RANGE | SECTION WT. (Kg/m) |
|---|---|
| Equal Angles | |
| 35 x 35 x 5 | 2.6 |
| 40 x 40 x 5 | 3.0 |
| 40 x 40 x 6 | 3.5 |
| 45 x 45 x 5 | 3.4 |
| 50 x 50 x 5 | 3.8 |
| 50 x 50 x 6 | 4.5 |
| 65 x 65 x 5 | 4.9 |
| 65 x 65 x 6 | 5.8 |
| 65 x 65 x 8 | 7.7 |
| 75 x 75 x 6 | 6.8 |
| 75 x 75 x 8 | 8.9 |
| 75 x 75 x 10 | 11.0 |
| 90 x 90 x 6 | 8.2 |
| 90 x 90 x 8 | 10.8 |
| 90 x 90 x 10 | 13.4 |
| 100 x 100 x 6 | 9.2 |
| 100 x 100 x 8 | 12.1 |
| 100 x 100 x 10 | 14.9 |
| 100 x 100 x 12 | 17.7 |
| 110 x 110 x 8 | 13.4 |
| 110 x 110 x 10 | 16.6 |
| 110 x 110 x 12 | 19.7 |
| PRODUCT RANGE | SECTION WT. (Kg/m) |
|---|---|
| Equal Angles | |
| 35 x 35 x 5 | 2.6 |
| 40 x 40 x 5 | 3.0 |
| 40 x 40 x 6 | 3.5 |
| 45 x 45 x 5 | 3.4 |
| 50 x 50 x 5 | 3.8 |
| 50 x 50 x 6 | 4.5 |
| 65 x 65 x 5 | 4.9 |
| 65 x 65 x 6 | 5.8 |
| 65 x 65 x 8 | 7.7 |
| 75 x 75 x 6 | 6.8 |
| 75 x 75 x 8 | 8.9 |
| 75 x 75 x 10 | 11.0 |
| 90 x 90 x 6 | 8.2 |
| 90 x 90 x 8 | 10.8 |
| 90 x 90 x 10 | 13.4 |
| 100 x 100 x 6 | 9.2 |
| 100 x 100 x 8 | 12.1 |
| 100 x 100 x 10 | 14.9 |
| 100 x 100 x 12 | 17.7 |
| 110 x 110 x 8 | 13.4 |
| 110 x 110 x 10 | 16.6 |
| 110 x 110 x 12 | 19.7 |
